Product Description

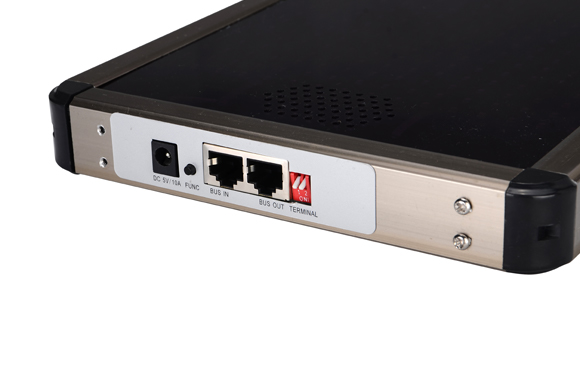

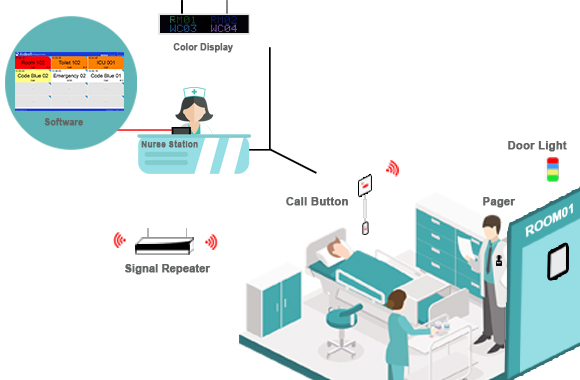

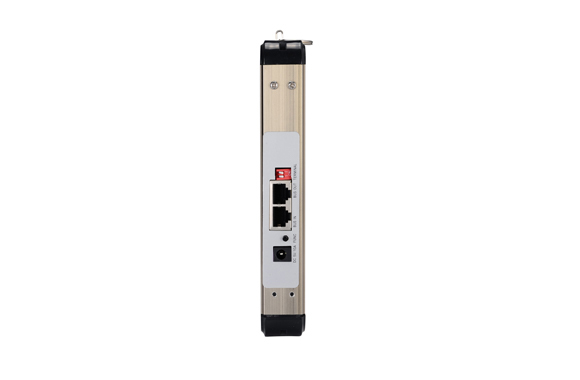

Aidbell Wireless Paging Receiver EC-1000R offers advanced communication capabilities, allowing seamless integration with nurse call buttons, nurse call lights, nurse pagers and Aidbell management software.

It works optimally with Nurse call buttons EC-200CX/EC-200AX/EC-200NX/EC-200CB, utilizing different Dot-Matrix colors to indicate various calling types effectively.

As a cost-effective and user-friendly solution, this system can be easily configured to cater to the requirements of diverse healthcare facilities.

Specification:

Working frequency 433MHZ
Working voltage DC5V
Working Current ≤3A
Audio output 2W
Sensitivity ≥-100dB
Dimension  750x 180 x 28mm
  • Simple wireless operation and maintenance
  • Wireless programming procedure for call buttons settings(400 pcs call buttons in max)

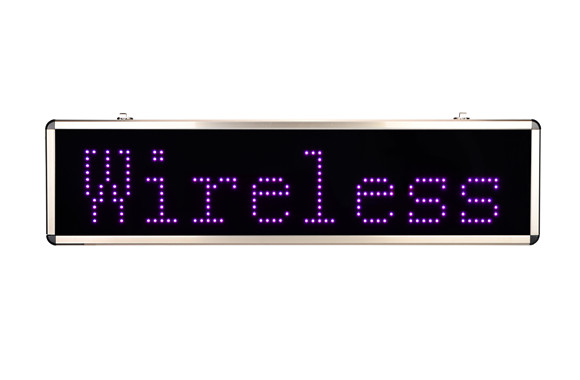

  • 7 colors Dot-Matrix Display with 7 ringing tones available

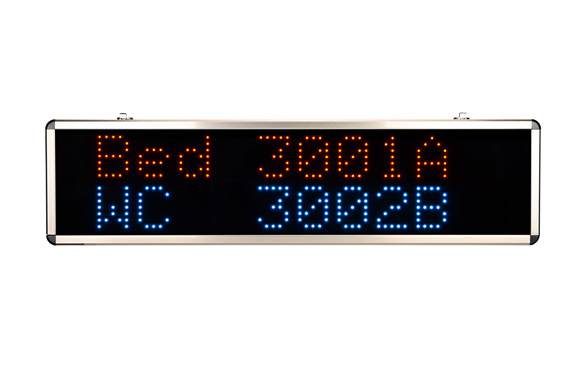

  • Able to show 1 or 2 or 4 groups of calling numbers at one time
  • Name with 10 digits Letter & number in max for each call button
  • Set different color Dot-Matrix and ringtone for each call button

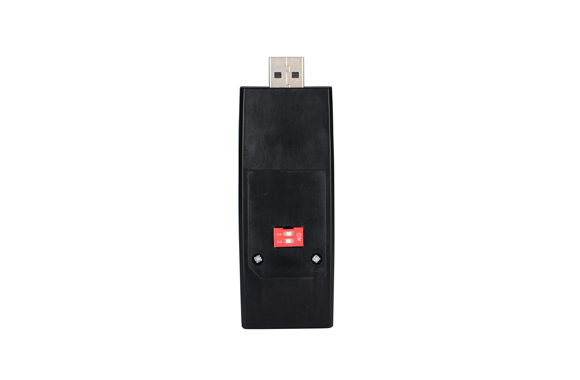

  • Connect with PC via Aidbell software to manage all the calling information
  • Able to show running message or current time when stand-by
  • With copy function to copy data & setting to other EC-1000R

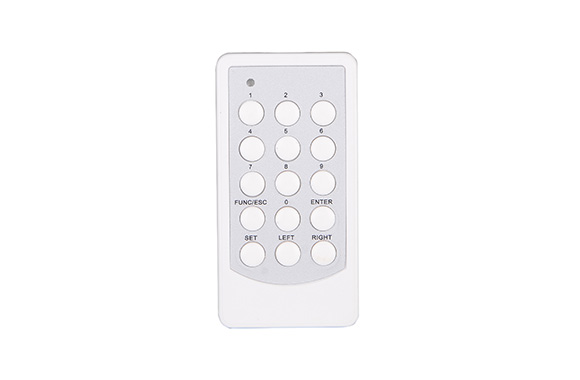

  • Support remote control to cancel calling information and set functions
  • Able to show different service type with special symbol settings
  • Low battery indication when works with call buttons with Low battery indication function
