Product Description

Aidbell Accessible Toilet Alarm System is designed to address emergencies in disabled toilet facilities. If a disabled individual slips or falls and requires immediate assistance, they can pull the Emergency Pull Cord to send an instant alert, even if they are on the ground. This triggers the overdoor light outside the disabled toilets, which will flash and emit a beep to signal the emergency. Therefore, assistance will come very soon to give them a hand. The Accessible Toilet Alarm System enhances both safety and accessibility, offering peace of mind in public and private spaces alike.

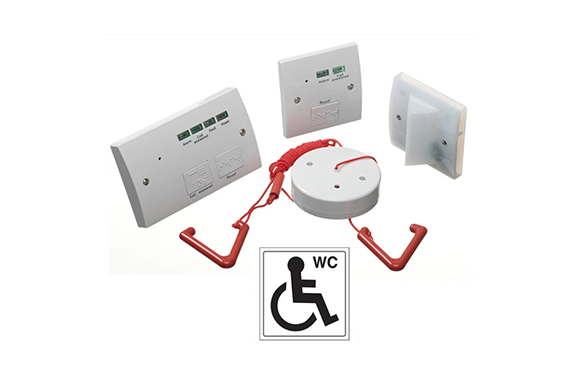

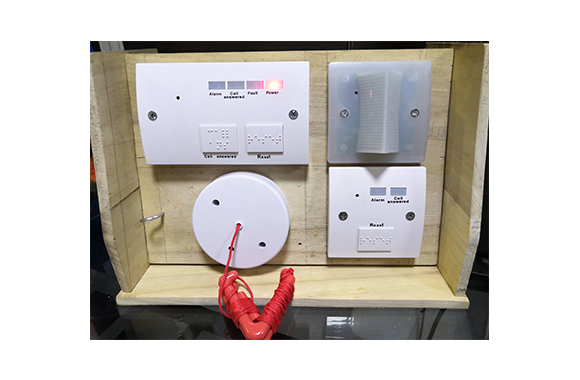

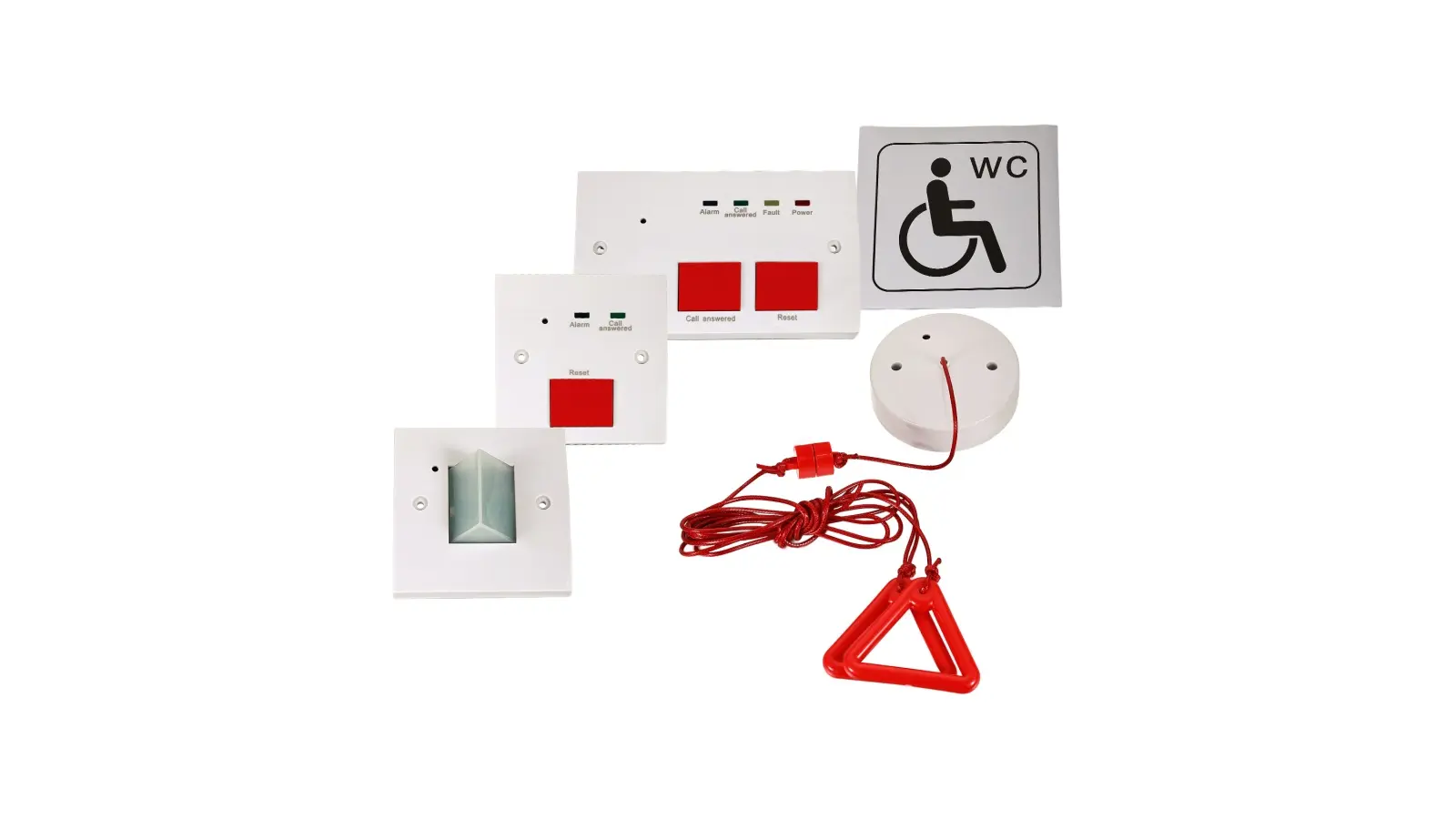

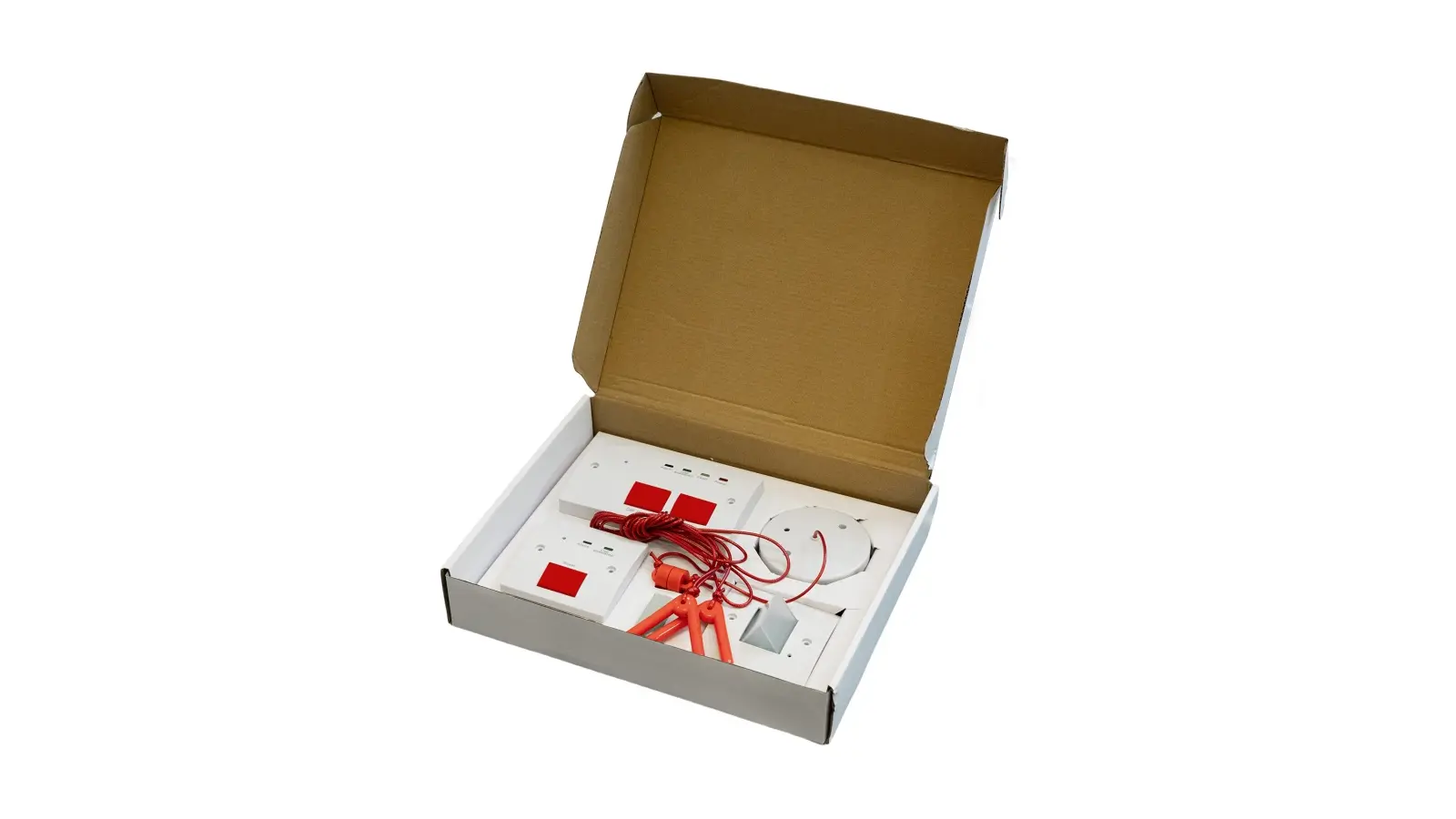

Components of Aidbell Wired Accessible Toilet Alarm Kit:

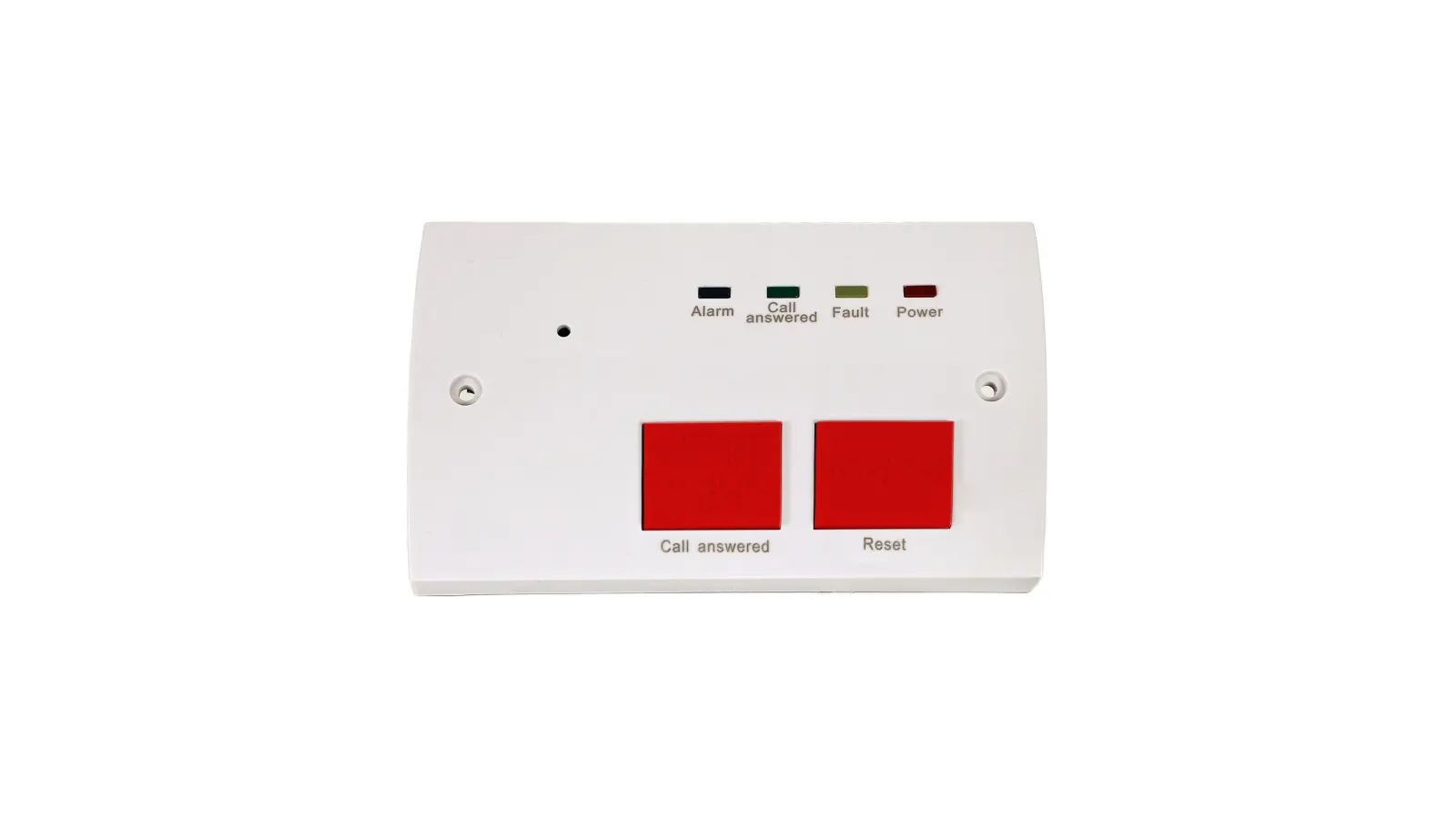

  1. Main Control Unit(MCU) incorporating buzzer, with LED indicators volume control and Braille lettering on buttons

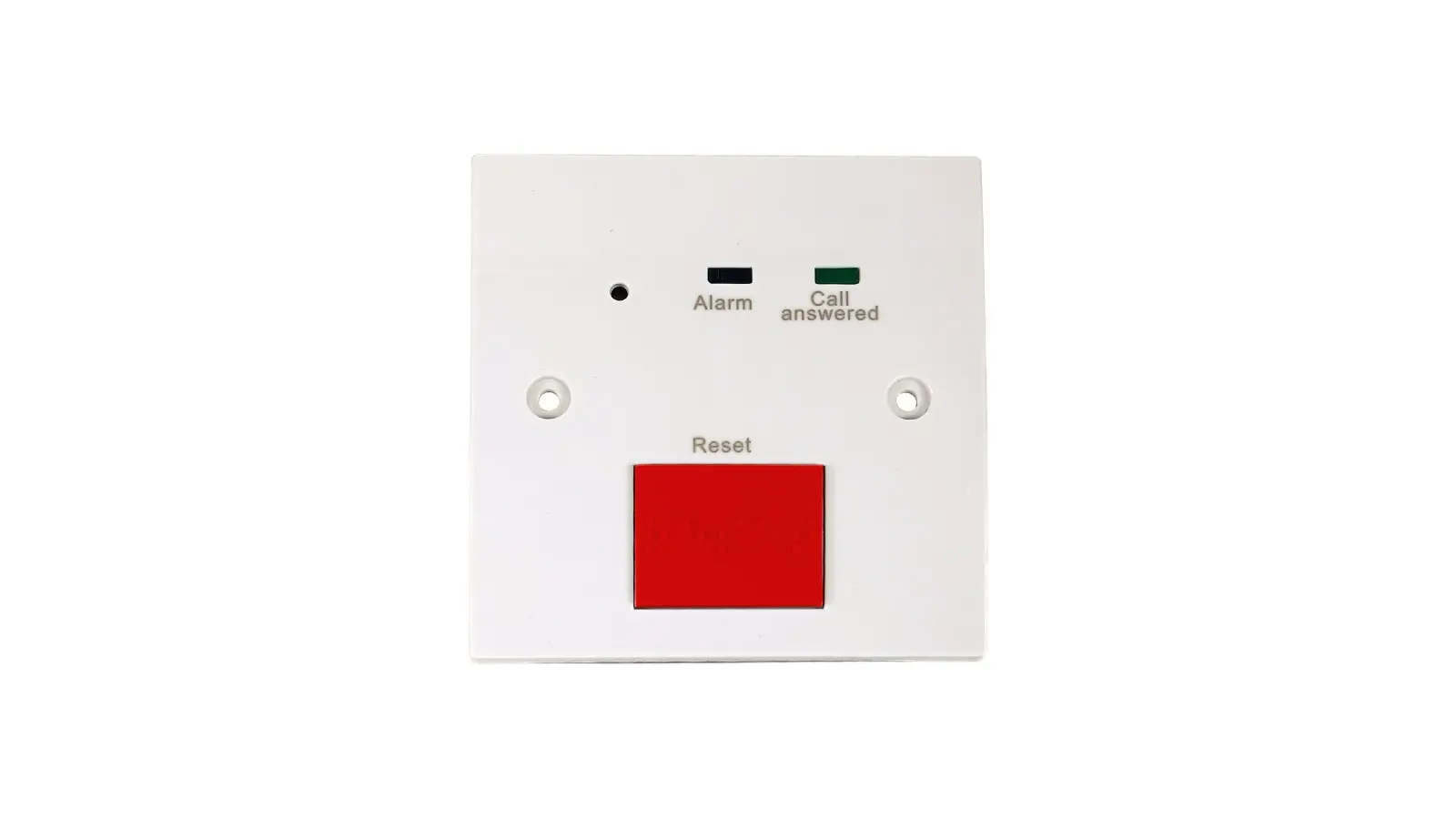

  2. Remote Reset Unit incorporating LED indicators and Braille lettering on buttons
  3. Over door light sounder alarm

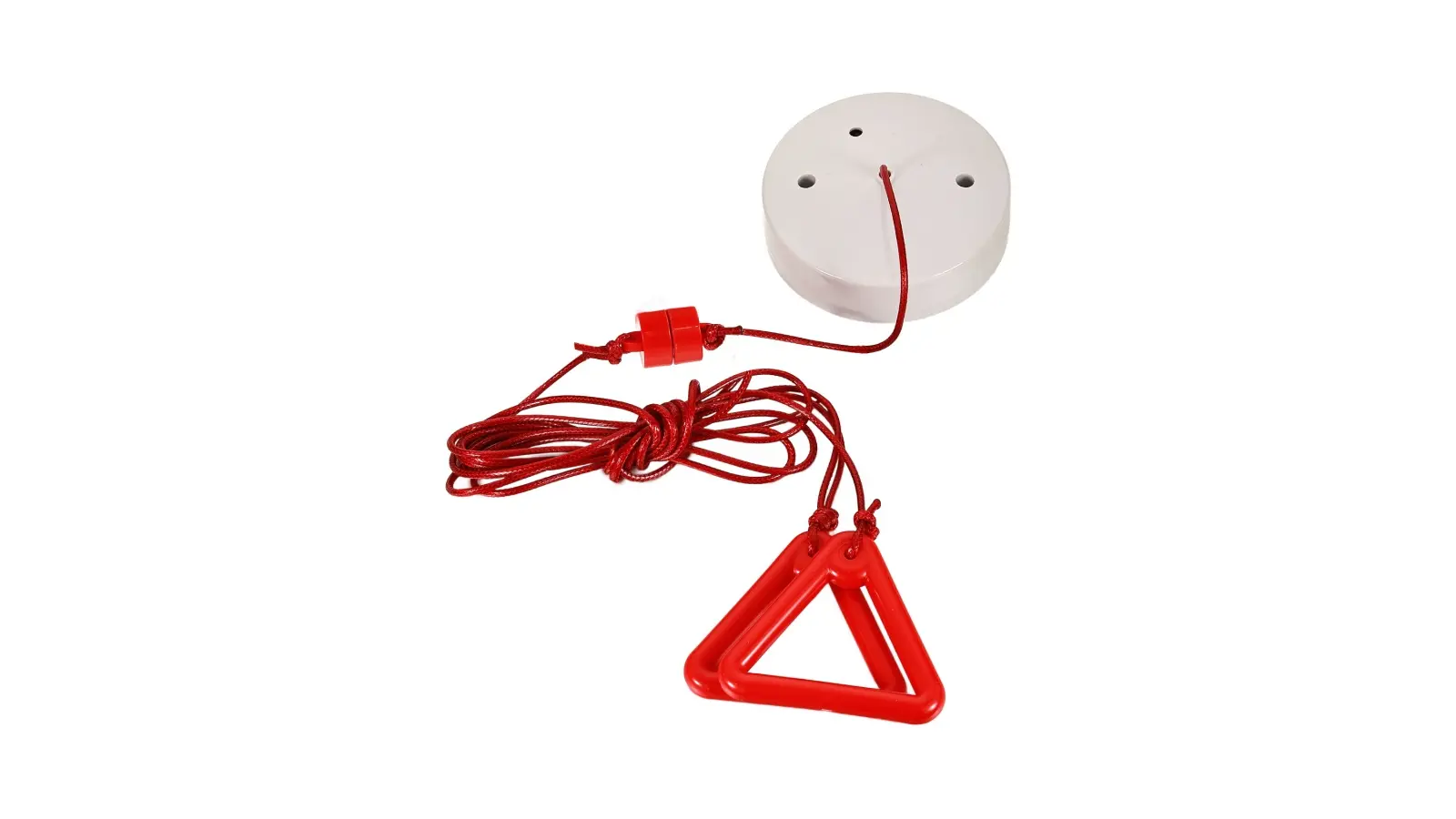

  4. Pull switch with LED indicator and 2 triangular Emergency pull cords
  5. Disabled WC self-adhesive label

Specification:

Power Supply 230Vac /50Hz
Earth Class Class I (Must be Earthed)
Operating Temp 5℃to 40℃ (indoor use only)
Construction PVC
Mains Fuse required 3 Amp
Internal PCB Fuse 1 Amp
Backup Battery Ni-MH 9V250mAh rechargeable
  • The Main Control Unit of  Wired Accessible Toilet Alarm Kit is equipped with ” Call answered ” and ” Reset ” functions
  • 4 LED indicators on the Main Control Unit: Alarm, Call Answered, Fault, and Power
  • The call answered function allows staff to send an intermittent call acknowledgment signal to the toilet to notify the occupants that help is coming
  • Ceiling mounted pull cord switch is equipped with 2 emergency pull cords to be used at different heights
  • Call answered and Reset buttons are braille-marked for the visually impaired
  • The overdoor light has a super bright LED indicator and a loud sounder to make a distinctive alarm
  • High-integrity protective overdoor light covers
  • Accessible Toilet Alarm Kit is equipped with an Internal rechargeable battery for backup during power failure
  • Over-discharge protection is built into the main panel

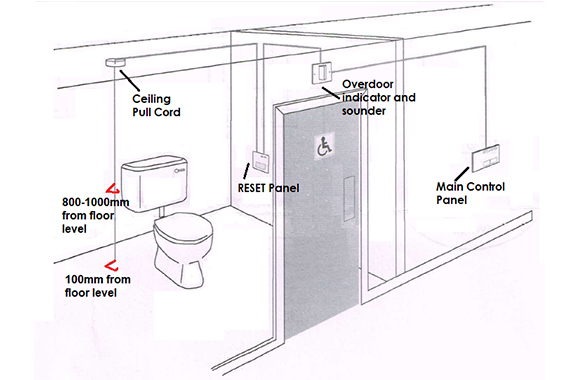

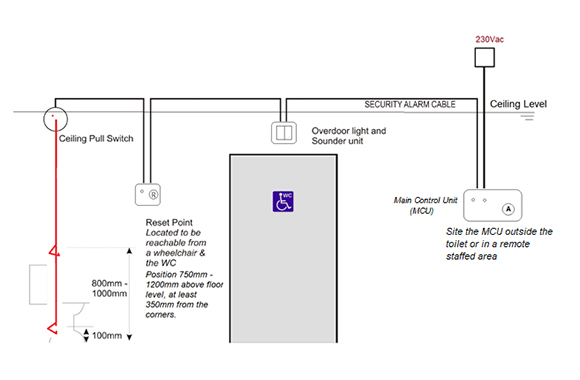

  • Easy installation: two wires system with detailed wiring diagram
  • Audio volume is adjustable on the main panel and light and additional sounder terminals supported
  • Disabled toilet alarm is used as an assistance alarm in not only disabled toilets but also shopping malls, changing rooms, solariums,reception areas, etc
